EPIC CAG

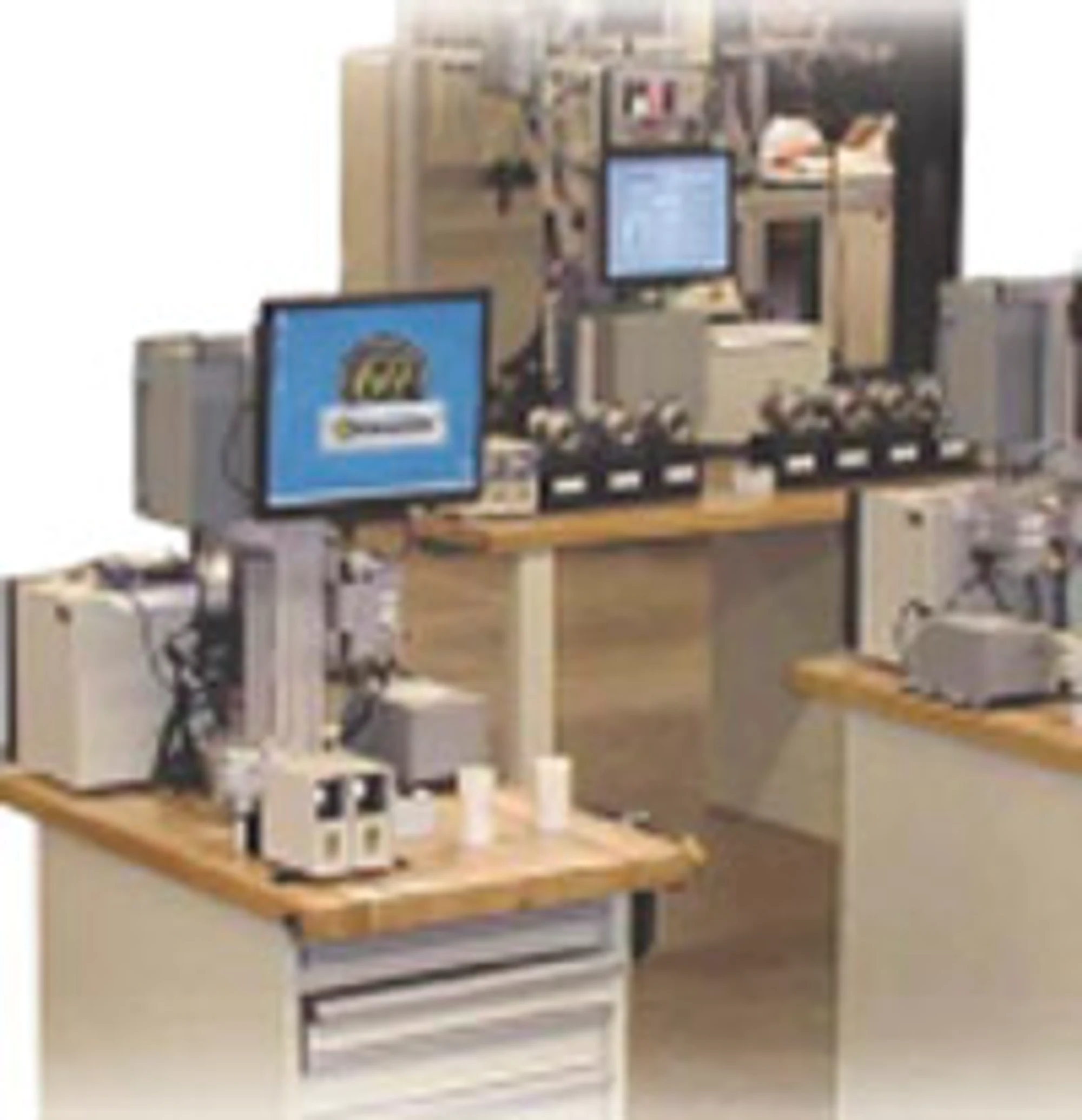

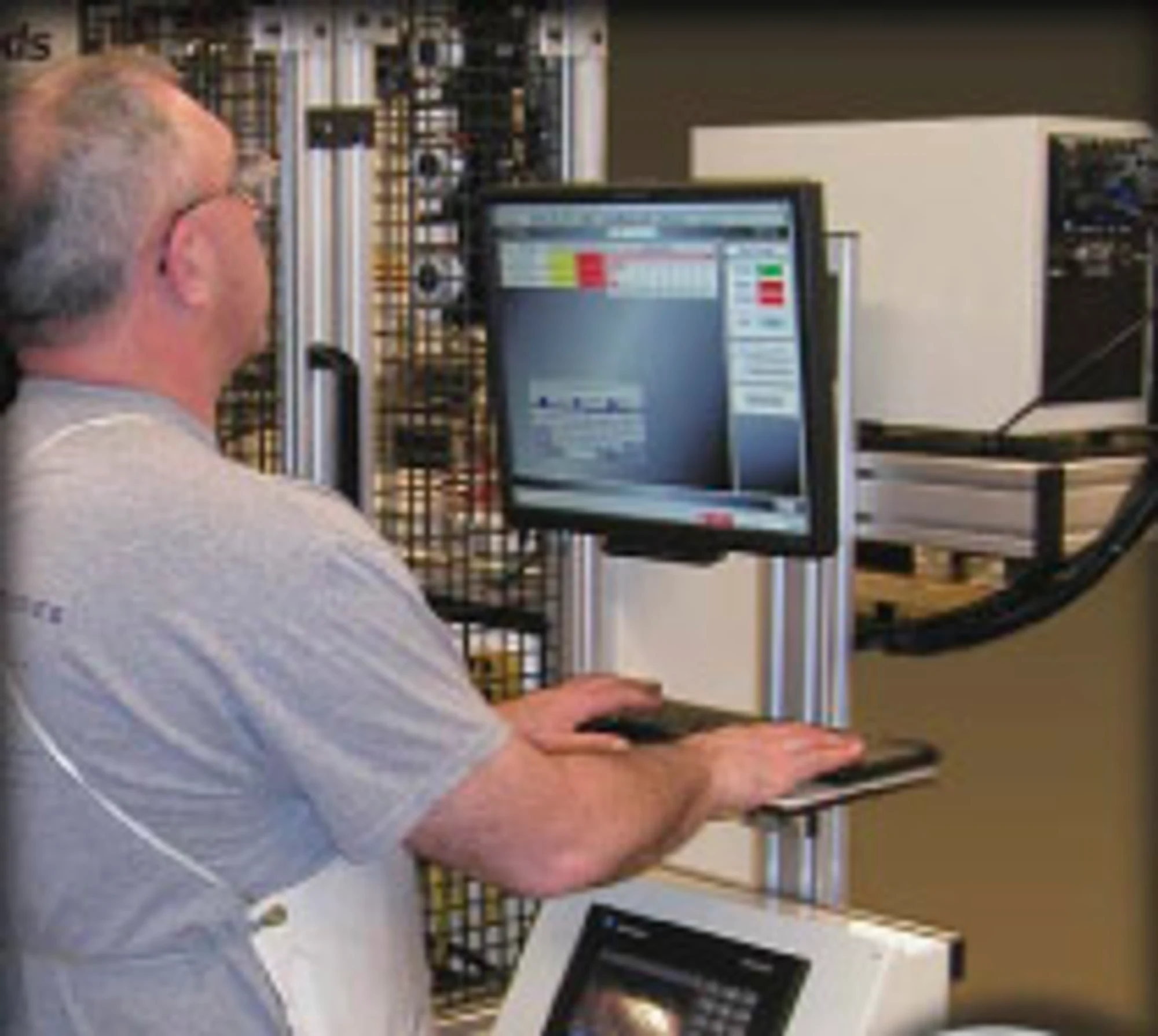

Edmunds Gages introduces EPIC-CAG, the newest generation of multi-dimensional computer aided gaging, featuring modular components to integrate the most complex gaging applications into the manufacturing process.

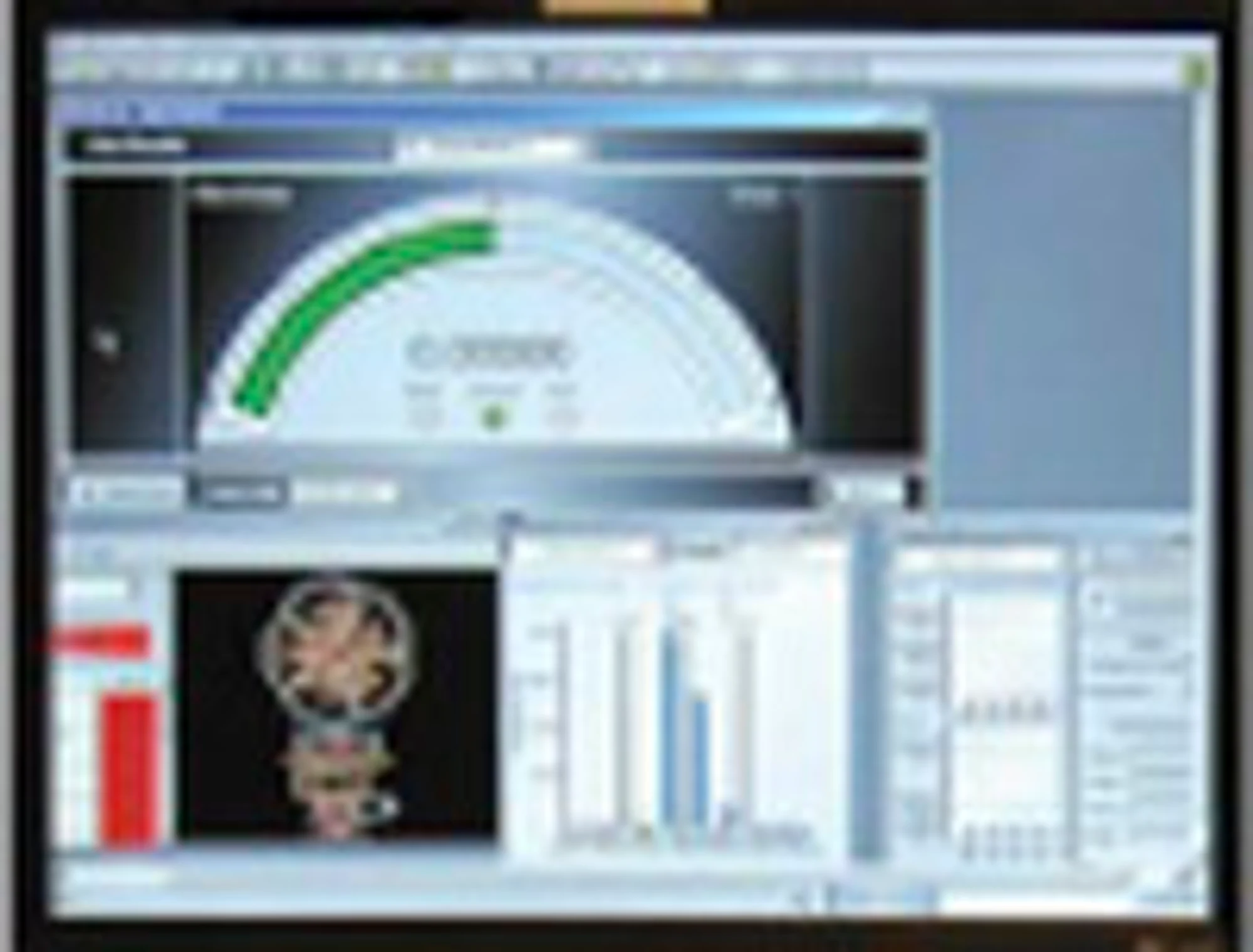

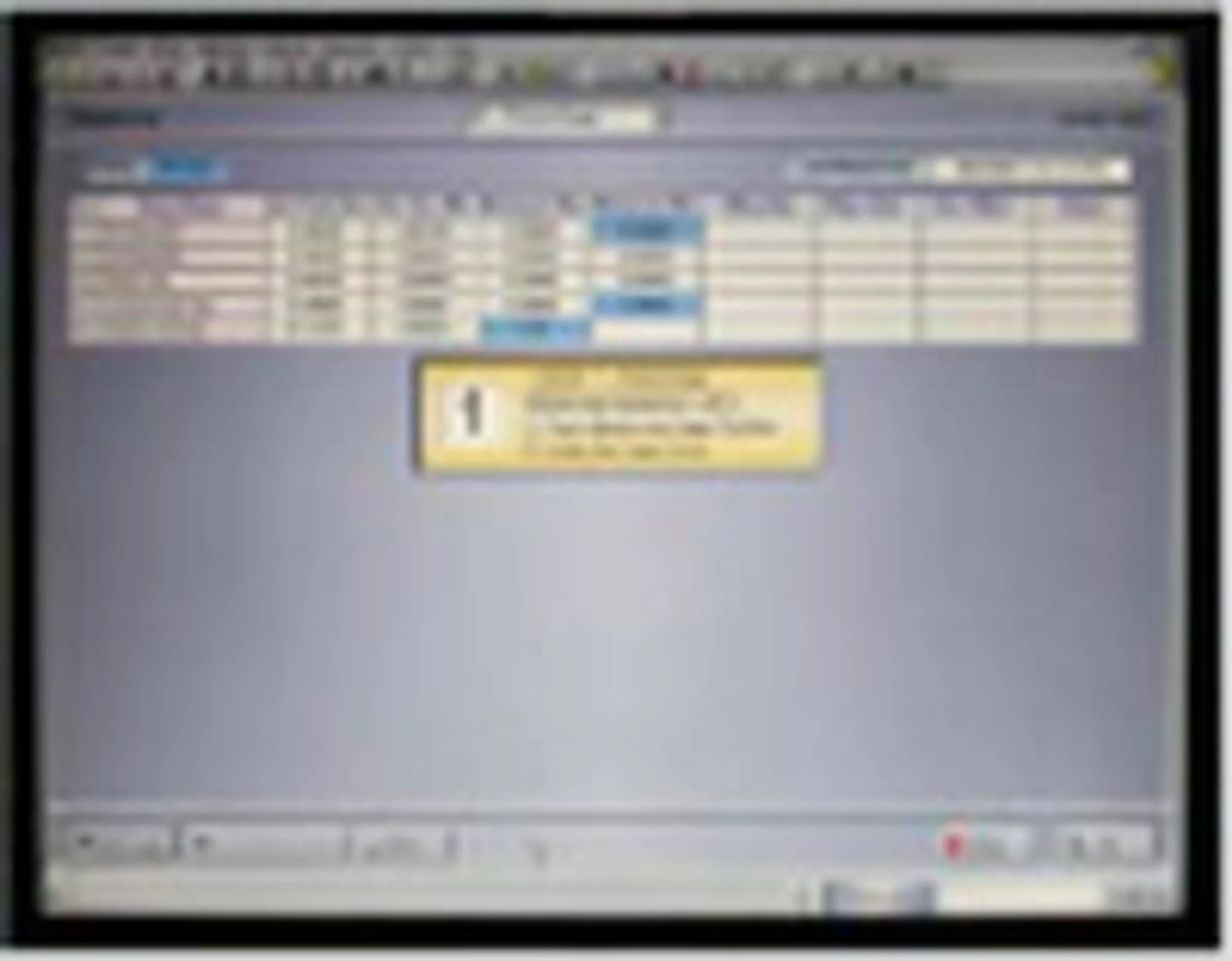

EPIC-CAG combines all the multi-dimensional measurement applications you can imagine, with the economic flexibility to select only the components you need. The powerful Windows-based operating system enables EPIC-CAG to manipulate data from an unlimited number of inputs and display results in multiple formats. Once captured, EPIC-CAG transmits the data directly to production machines, cell controlled software or the customer's in-house network. The real-time data allows for automatic adjustments and compensations, linking inspection control directly with the manufacturing process.

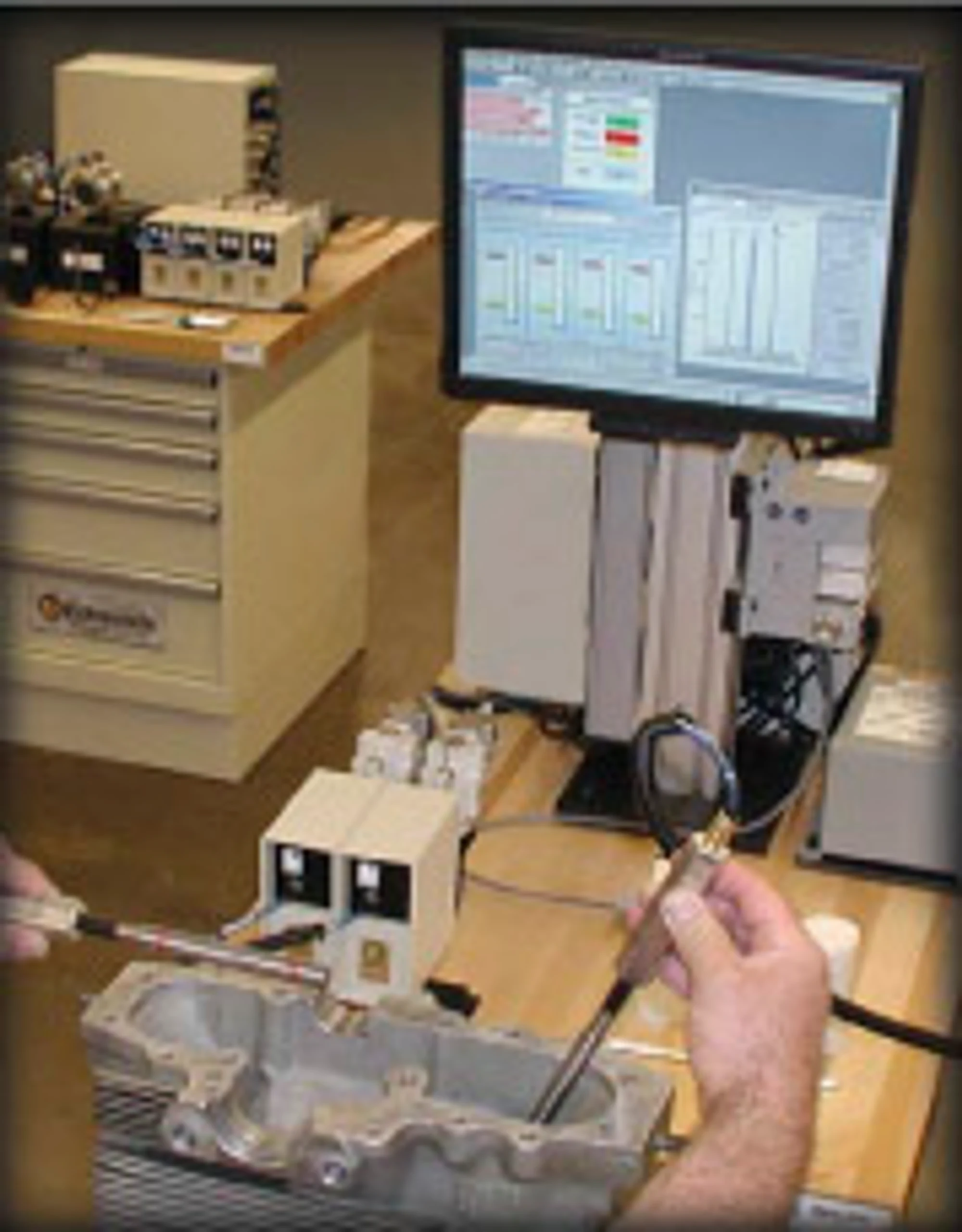

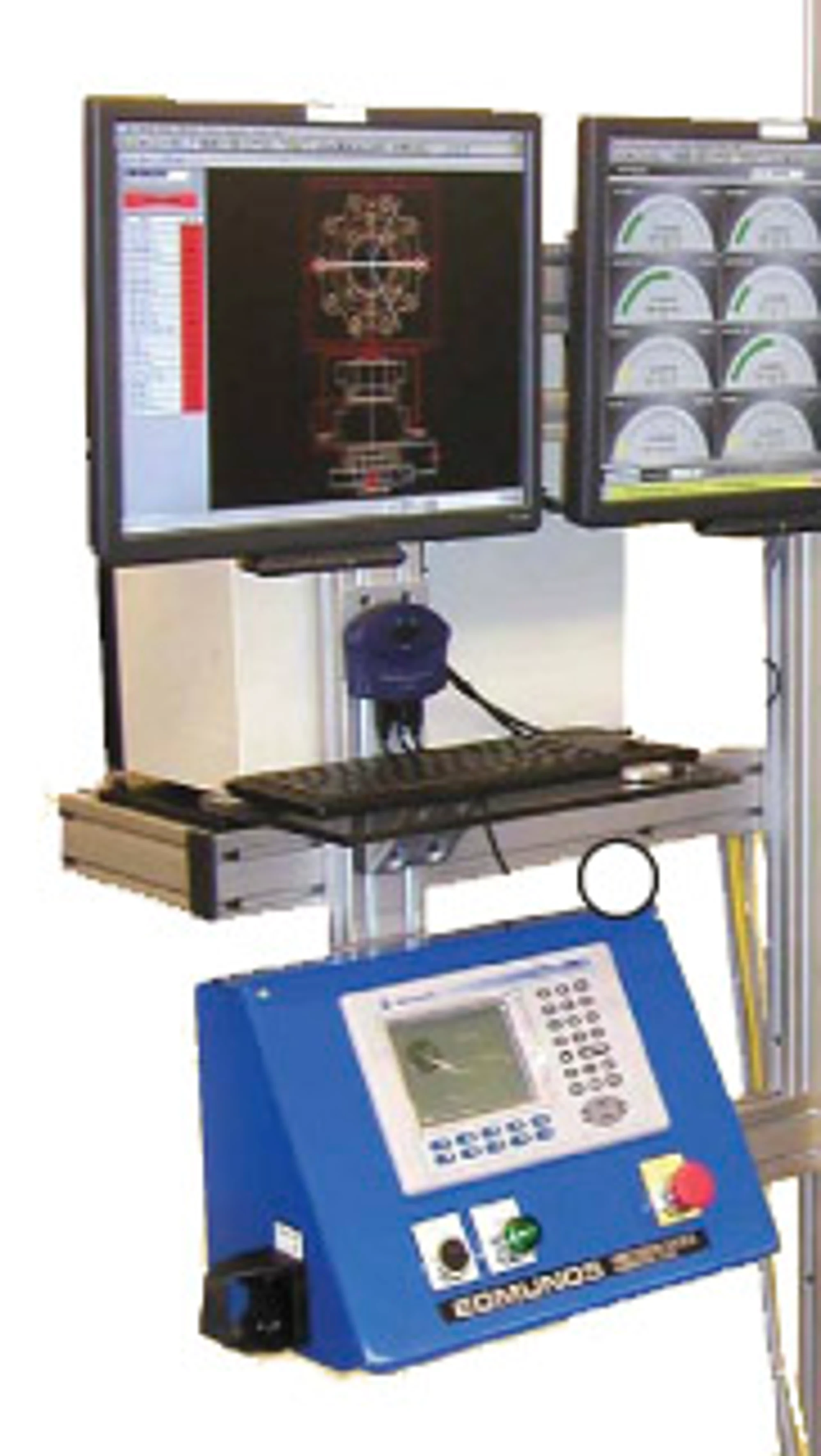

EPIC-CAG quickly and accurately analyzes, displays and communicates measurement data from Edmunds' LVDT probes, temperature probes, air-to-electronic transducer devices and CCD vision gaging medians. EPIC-CAG's modular design allows you to customize the components to fit your needs and your operations.
- Unlimited Signal Conditioning — from Edmunds air, LVDT, or temperature transducers, beginning at and expanding by multiples of four
- Size Compensation — to one or multiple machine tools, in a variety of formats

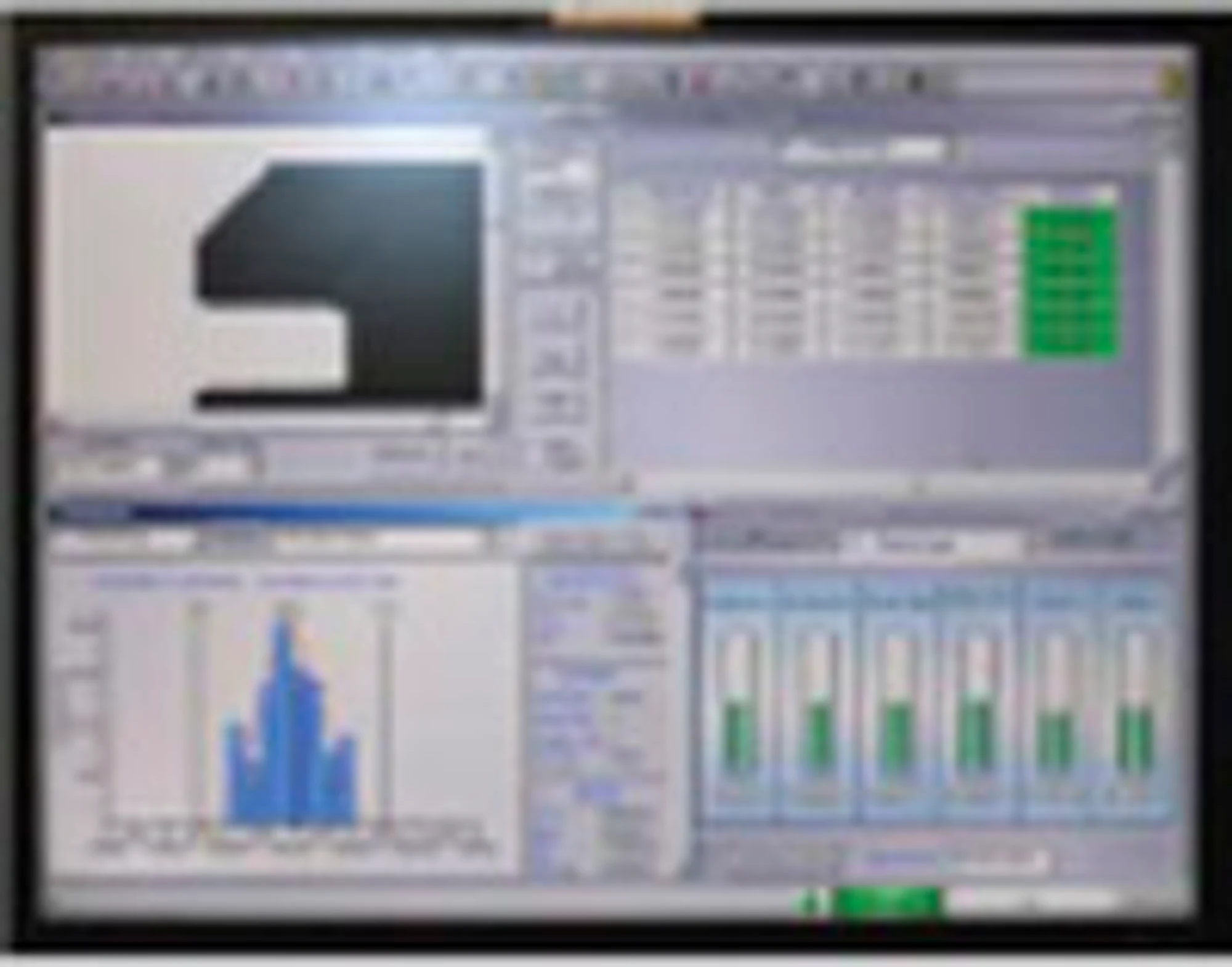

- Precision Vision — software module for CCD camera gaging
- Temperature Compensation — making all measurements look like 68°F
- Serial Inputs — capabilities to accept inputs from other devices
- Size Verification — automated routines to confirm gage operation
- Sort Classification — identify measurement results by number, letter, name, or from your designation
- Dynamic Interruption Adjustment — erase or ignore keyways, holes or protrusions during dynamic rotation measurement
- Expanded Mathematics Functions — higher math operators (y², sin, cos, tan) plus add, subtract, multiply, divide
- AIAG GR&R — software to report repeatability and reproducibility
- Sequential Photo Prompting — photographic work instructions to inform users where to measure
Specifications

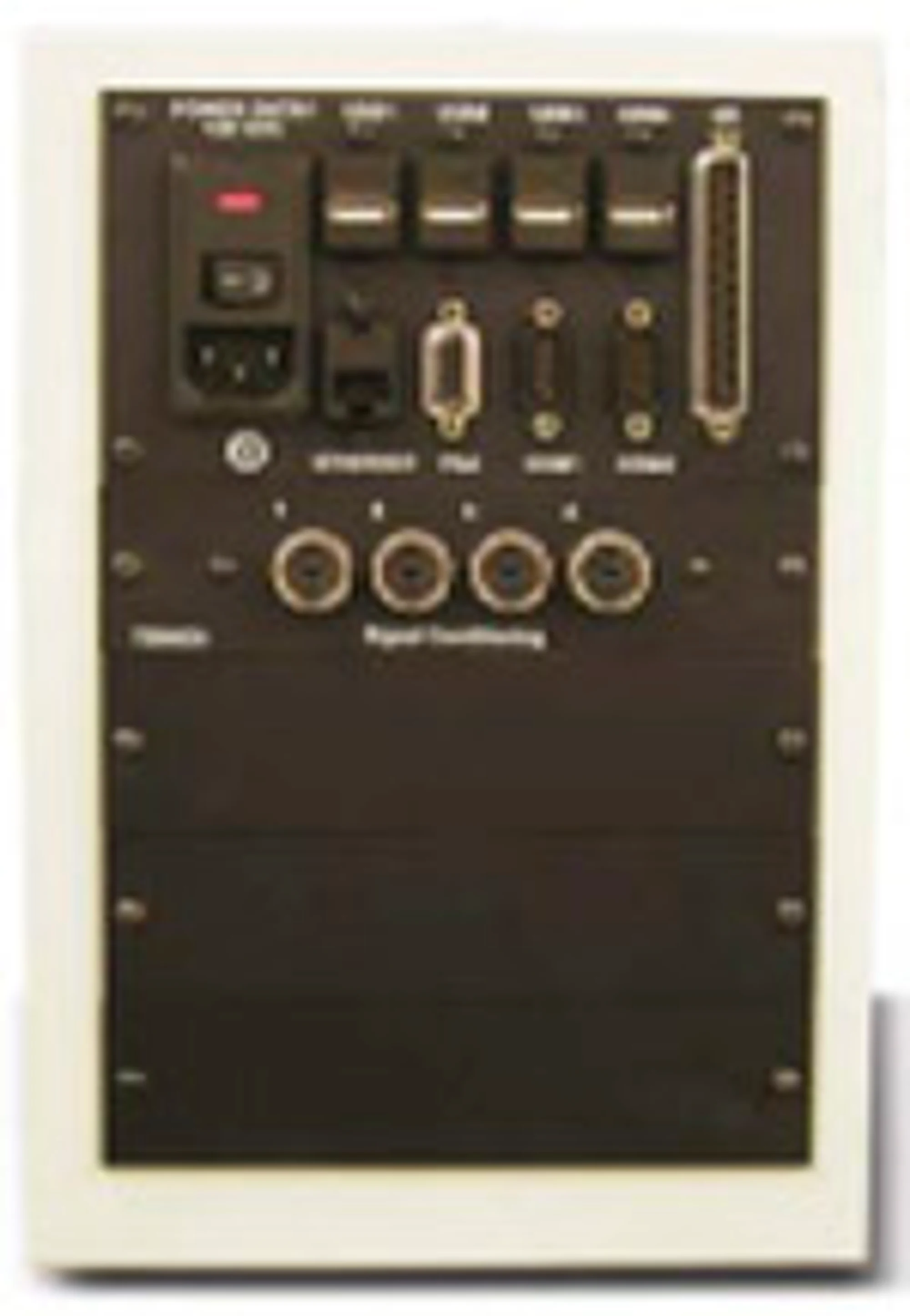

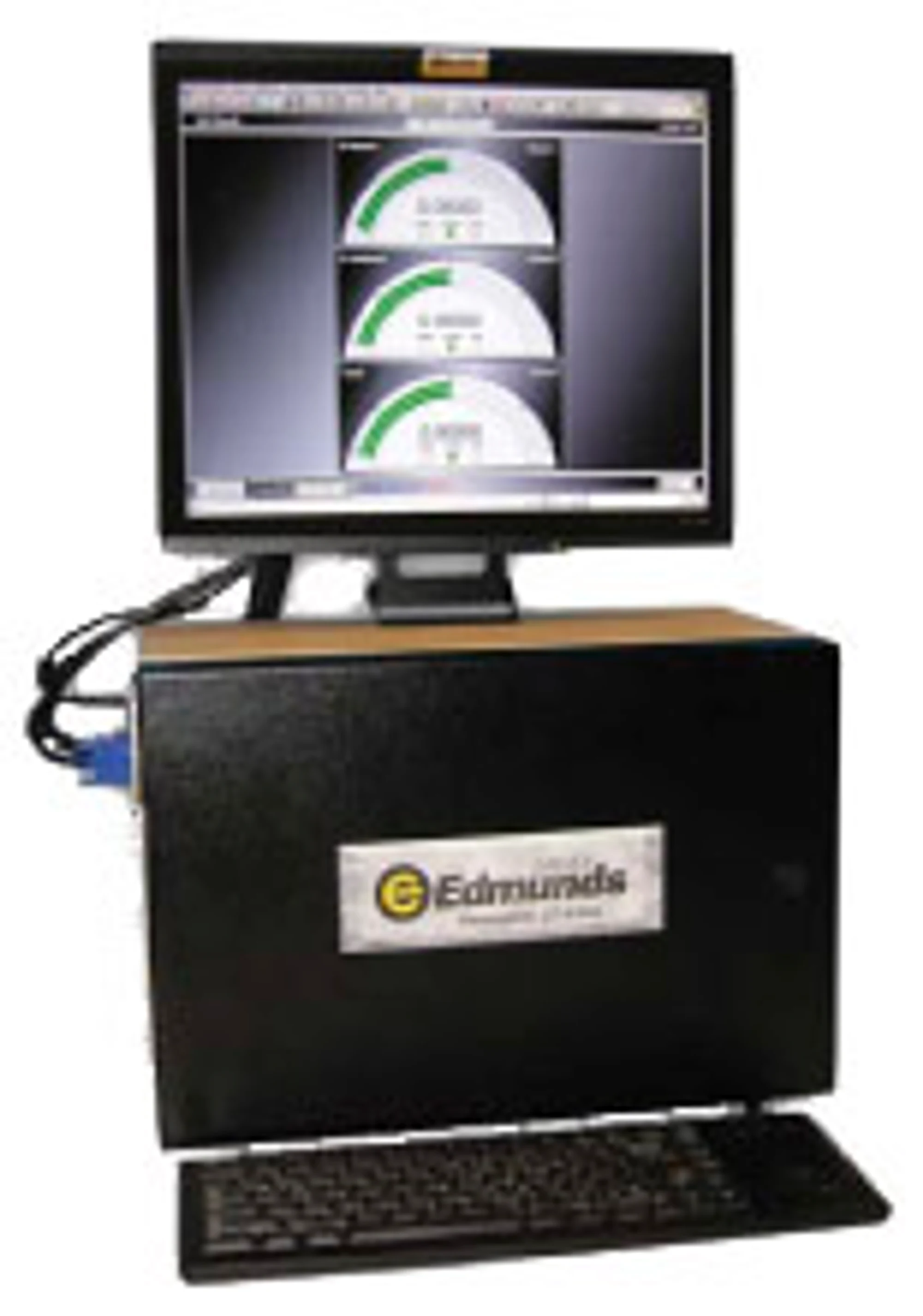

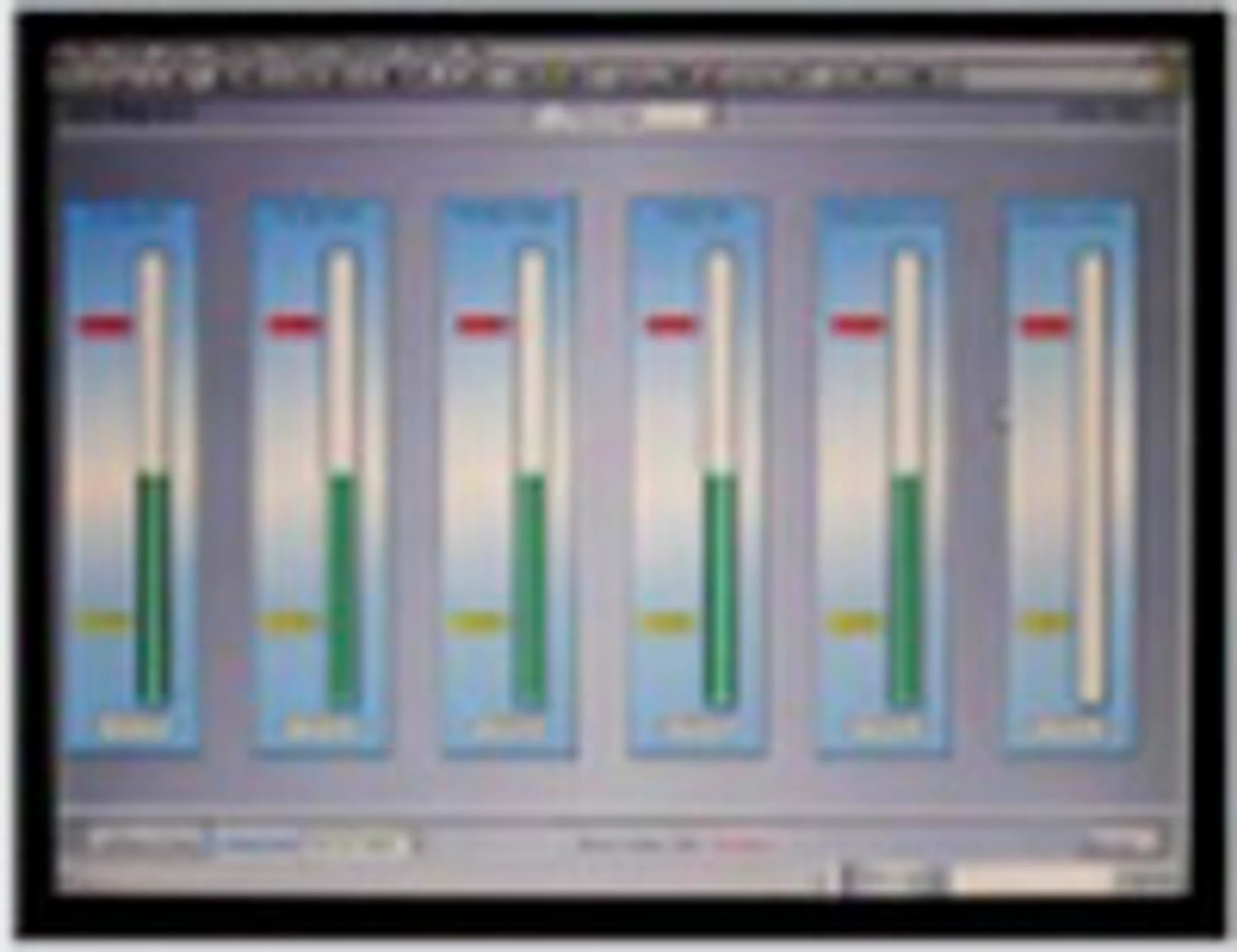

Basic CPU and Signal Conditioning Enclosure: 10.9" H × 16.0" W × 9.12" D. (1) Ethernet Port, (4) Serial Ports, (2) Com Ports, (1) VGA Port, (1) I/O Port. 17" Flat Panel LCD Display. Full ASCII keyboard with trackball and/or USB Mouse. Expandable hardware and software modules include: Serial / FOCAS II / Parallel I/O / BCD / Pulse Feedback, Precision Vision, Temperature Compensation, Remote Monitor(s), Custom Sort Classes, Zero Verification Automation, Dynamic Interruption Adjustment, Sequential Photo Prompting, Unlimited Check Quantity, File Storage.
